30m/Min Ppgi High Speed Roll Forming Machine For Flat Ceiling T Bar

High speed 30m/min flat ceiling T bar rolling forming machine

We can supply Ceiling T bar making machines in various types;We also offer all kind of fully automatic metal drop ceiling tile production line for manufacturing different sizes of ceiling boards such as 600*600mm, 300*300mm, 600*1200mm. With the metal ceiling tiles from these machines, these can be fabricated into a whole Exposed metal ceiling suspending system.

Take the following drawing profile for your reference:

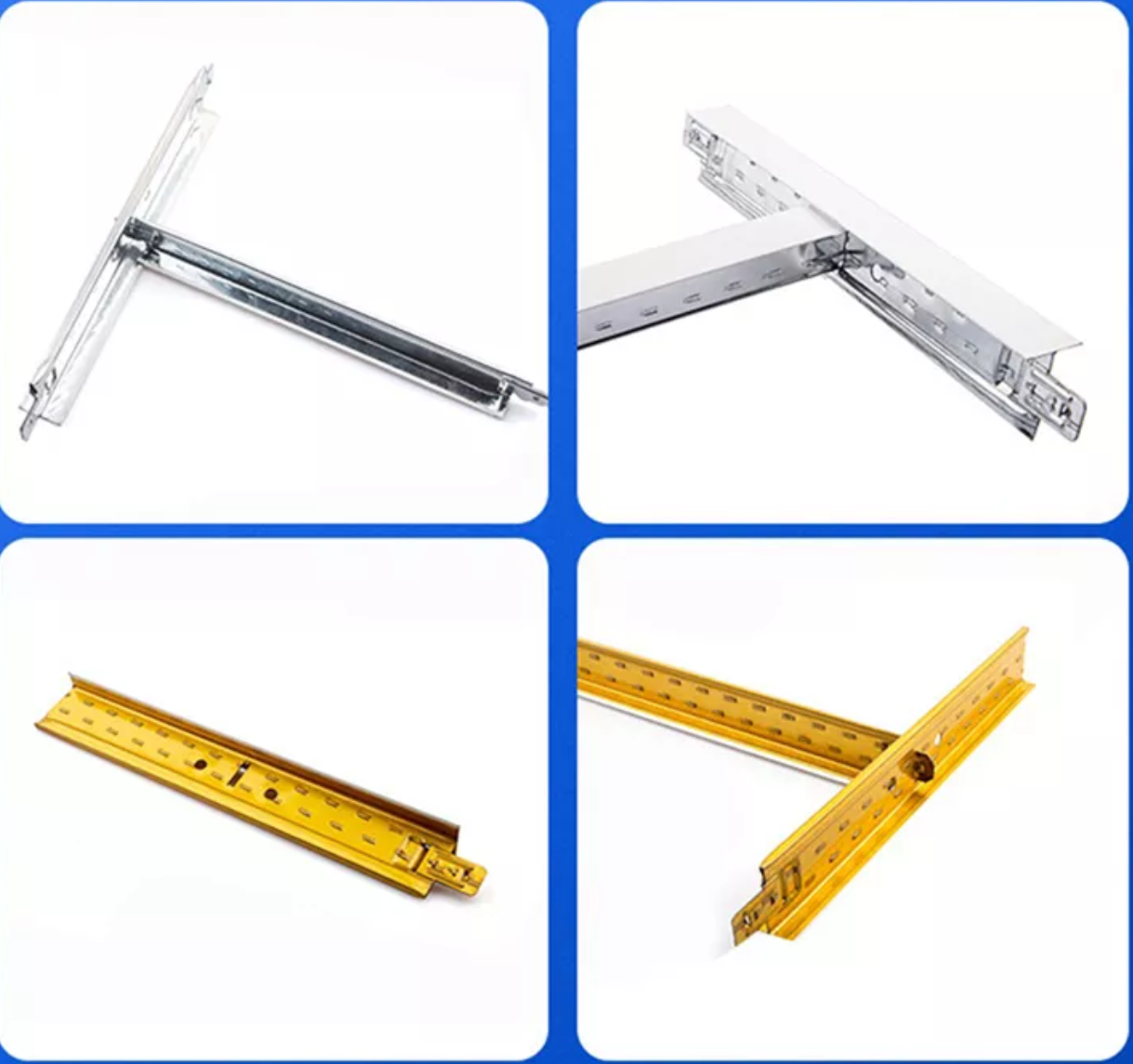

Here are more options for your reference:

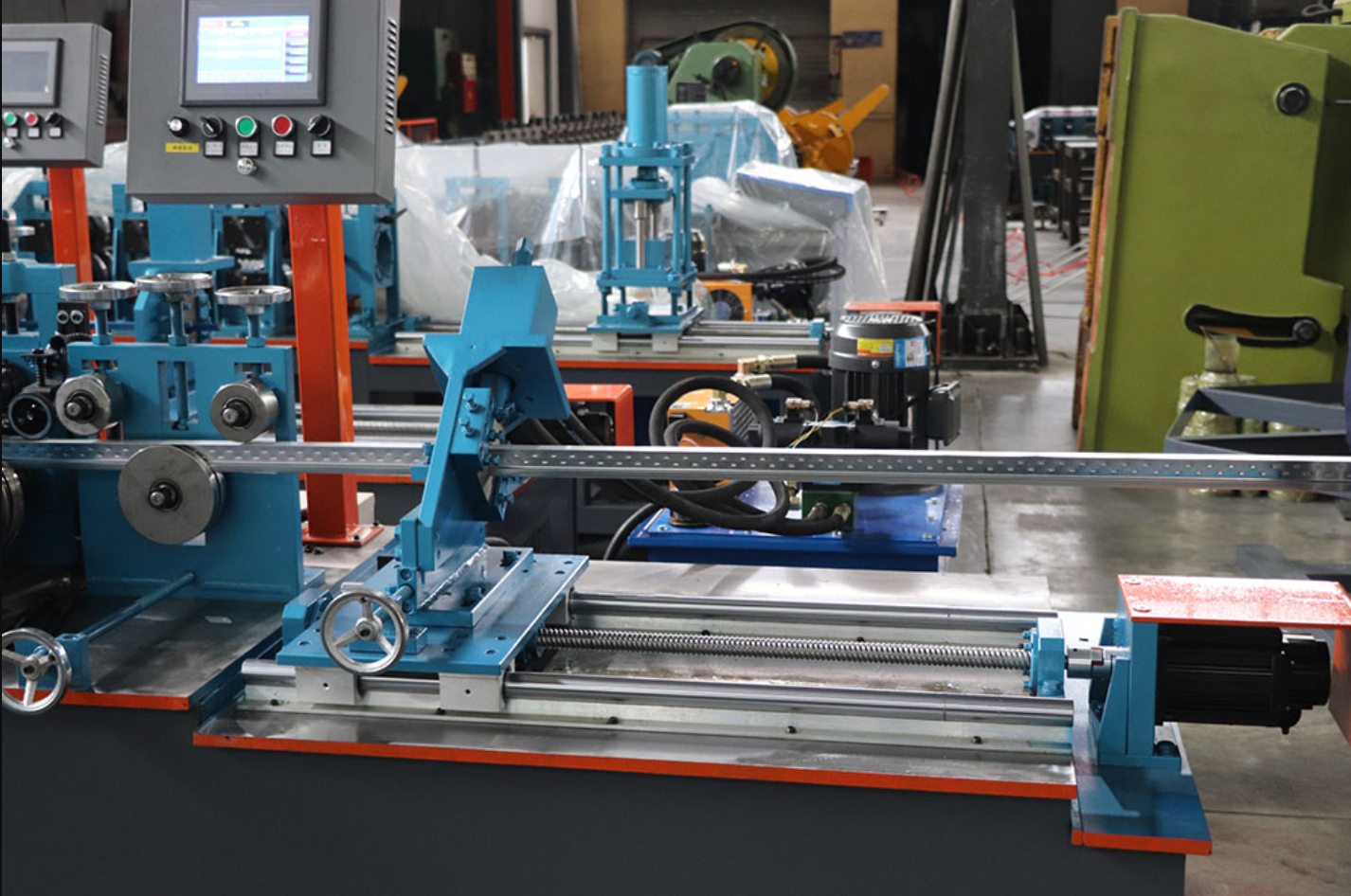

High speed 30m/min flat ceiling T bar rolling forming machine design:

High speed 30m/min flat ceiling T bar rolling forming machine technical features:

1. Fully automatic production including auto decoiler, continuously roll forming and automatic cutting off.

2. High speed, including the punching, the speed can reach 30 meter per minute.

• Full Worm wheel gearbox reducers driving or high quality gear and chain transmission as options to made according to customer budget.
• High precision main roll forming station with one whole set 13 punching dies for main T.
• High precision PLC and Servo feeder control -Machine protection for your choice.
• Good brand elements for long time to use.

As to the punching part for main T is the most different part, it can enhance the machine working speed meanwhile keep the high speed of working:

1.Processing flow diagram of machine

Manual decoiler( TWO pcs )→ Feeding material into machine →Roll forming machine -necks- - >punching&(with logo ) →Measure length→Hydraulic cutting → Finished Products& (output table)

Here are some basic parameters of High speed 30m/min flat ceiling T bar rolling forming machine for your reference:

For this machine, if you want to know more information, please contact us at any time and then we will share more videos and information to you.
